Model LV-100 Beam Edition EN · 04 / 2026 · V1 Doc. No. LV100-EN-01

Beam Moving Head

LV-100 Beam

Compact 100 W beam moving head with color wheel, fixed gobo wheel, prism and RGB auxiliary LED ring

Operating manual. Please read in full before first use and keep for future reference.

Light source

100 W LED+ RGB ring

Pan / Tilt

540° / 270°16-bit

DMX channels

161 channel mode

IP rating

IP20Indoor

Foreword

00Welcome

Thank you for choosing the Lexvision LV-100 Beam — a compact beam moving head with color wheel, fixed gobo wheel, prism and an additional RGB LED ring for effect light.

This document covers installation, operation, maintenance and troubleshooting of the fixture. Read the manual in full — especially the Safety Information chapter — before first use, and keep it with the unit.

0.1Intended Use

The LV-100 Beam is built exclusively for professional indoor use (IP20) — stages, clubs, banquet halls and event venues. Permitted ambient temperature: −20 °C to 40 °C. Not intended for household use.

0.2Scope of Delivery

1 × Lexvision LV-100 Beam
1 × Power cable
2 × Folding hanging brackets
1 × Spare fuse
1 × Operating manual

Table of Contents

—Overview

01Safety Information04
02Technical Data05
03Power & DMX Connection06
04Control Panel & Menu07
05DMX Channel Chart (16 CH, complete)08
5.1Color Wheel — Channel 0810
5.2Gobo Wheel — Channel 0911
06Maintenance & Troubleshooting12
—CE Compliance Notice13

Chapter 01

01Safety Information

Read this chapter fully before first use. This product is intended for professional use only.

Danger — Electric Shock Electrical connection must only be made by qualified personnel. Every unit must be properly grounded. Disconnect from mains before opening the housing, replacing the fuse, or installing/removing lamps.

Check the unit for transport damage immediately upon receipt; do not operate a damaged unit.
Indoor use only (IP20). Avoid damp, overheated or very dusty environments; prevent contact with water or other liquids.
Ambient temperature must not exceed 40 °C — stop operation immediately if exceeded.
When rigging, ensure the truss and mounting points support at least 10× the fixture's weight; always add a safety cable.
Minimum distance to combustible material: 0.5 m. Keep ventilation openings clear by at least 0.1 m. Never mount directly on a combustible surface.
Surface temperature can reach 60 °C during operation — do not touch the housing while running. Allow at least 15 minutes to cool before packing or moving.
Do not look directly into the light source — risk of eye damage from UV radiation. Never operate without lens/cover.
Replace protective screens, lenses or UV filters immediately if cracked or visibly damaged.
Maintain a minimum projection distance of 10 m to avoid exposing subjects at close range.
Use only the specified fuse (Ø5×20 mm, 5 A, 250 V, slow-blow) — never substitute a different rating.

Chapter 02

02Technical Data

Light Source & Optics

LED source	1 × 100 W high-performance LED chip (white)
Auxiliary light	RGB LED ring, dimmable, strobe & effect capable
Color temperature	10,000 K
LED lifespan	approx. 50,000 h
Beam angle	2.0°, Ø135 mm glass lens
Color wheel	1 wheel, 10 colors + white, with split-color effect
Gobo wheel	1 fixed pattern wheel, 14 patterns + white
Prism	1 × 24-facet (18-facet variant available), rotating
Dimmer / Strobe	0–100 % · electronic, 0–25 flashes/s

Movement & Control

Pan	0 – 540°, 16-bit
Tilt	0 – 270°, 16-bit
Protocol	DMX-512 / RDM (bidirectional)
DMX channels	16 CH
Operating modes	DMX · Auto · Master/Slave · Sound-active
Display	1.5" TFT LCD, 4 function buttons

Electrical & Housing

Input voltage	AC 100 – 250 V, 50/60 Hz
Power draw	200 W (250 W power supply)
Fuse	Ø5×20 mm, 5 A, 250 V, slow-blow
IP rating	IP20 — indoor
Connectors	Seetronic power IN, 3-pin XLR DMX IN/OUT

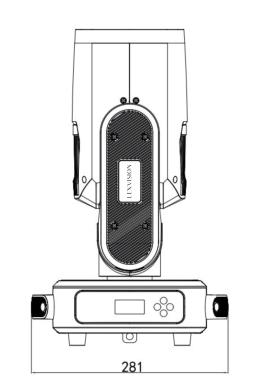

Dimensions	280 × 254 × 451.5 mm
Weight	9.8 kg

Chapter 03

03Power & DMX Connection

3.1Power Connection & Fuse

Input voltage	AC 100 – 250 V, 50/60 Hz
Fuse	Ø5×20 mm, 5 A, 250 V, slow-blow (glass tube)
Connector	Seetronic connector, 3-core cable

To replace the fuse: turn the fuse cap counter-clockwise, remove the old fuse, insert a new fuse of the same type, and tighten the cap clockwise. Always disconnect the unit from mains first.

3.2DMX512 Connection

The DMX in/out uses a 3-pin XLR connector: pin 1 ground (GND), pin 2 DATA−, pin 3 DATA+. Connect fixtures only in series (never in parallel).

Fit a 120 Ω termination resistor at the output connector of the last fixture in the chain to prevent signal reflection and interference.
If the distance between console and fixture, or between fixtures, exceeds 60 m, a signal amplifier is required.
A device must not carry two inputs or two outputs simultaneously — one input and one output per connector only.
If the external cable is damaged, it must be replaced by a cable of the same type supplied by the manufacturer or its service partner.

Safety Cable Always secure the rigged fixture with an additional safety cable to the truss — a fully secured attachment prevents accidents from falls.

Chapter 04

04Control Panel & Menu

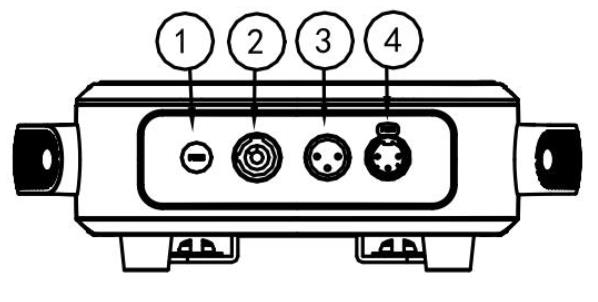

4.1Connector Panel

Fuse holder	Access to mains fuse
Power IN	Seetronic power input (blue)
Signal IN	3-pin XLR, DMX input
Signal OUT	3-pin XLR, DMX output / loop-through

4.2Button Functions (1.5" TFT display)

Button	Function
Left	Enter menu / go back one step
Up	Menu up / increase value
Down	Menu down / decrease value
Right	Continue navigating menu downward
Confirm	Open menu item / save change

Operating Modes Auto mode (internal program), DMX mode (console control), Master/Slave mode (multi-fixture sync) and sound-active mode (microphone control) are selectable from the menu.

Chapter 05

05DMX Channel Chart (1/2 · Channel 01–09)

CH	Function	Range / Description
01	X axis (pan)	0 – 255 · 0 – 540°
02	X axis fine tuning	0 – 255
03	Y axis (tilt)	0 – 255 · 0 – 270°
04	Y axis fine tuning	0 – 255
05	X/Y speed	Motor rotation speed, fast → slow
06	Dimmer	0 – 255 · 0 – 100 %
07	Strobe	0–3 Linear (open, no strobe)
		4–99 Simultaneous stroboscopic
		100–149 Pulse stroboscopic
		150–199 Sharp flash
		200–250 Random stroboscopic
		251–255 Fast-speed dimmer flash
08	Color wheel see chapter 5.1	0–7 White
		8–19 Color 1
		20–31 Color 2
		32–43 Color 3
		44–55 Color 4
		56–67 Color 5
		68–79 Color 6
		80–91 Color 7
		92–103 Color 8
		104–115 Color 9
		116–127 Color 10
		128–189 Anticlockwise, fast → slow
		190–193 Stop
		194–255 Clockwise, slow → fast
09	Gobo wheel see chapter 5.2	0–7 White (open)
		8–11 Gobo 1
		12–15 Gobo 2
		16–19 Gobo 3
		20–23 Gobo 4
		24–27 Gobo 5
		28–31 Gobo 6
		32–35 Gobo 7
		36–39 Gobo 8
		40–43 Gobo 9
		44–47 Gobo 10
		48–51 Gobo 11
		52–55 Gobo 12
		56–59 Gobo 13
		60–63 Gobo 14
		64–189 Gobo 1–14 shake effect, slow → fast (9 DMX values each)
		190–221 Gobo wheel run reverse, fast → slow
		222–223 Stop
		224–255 Gobo wheel run forward, slow → fast

Continued on page 9

05DMX Channel Chart (2/2 · Channel 10–16)

Continued from page 8

CH	Function	Range / Description
10	Prism (lens)	0–31 Prism out
		32–63 Prism in
		64–255 Prism rotation reverse, slow → fast
11	Focus	0 – 255, linear
12	Aux. light (RGB ring) dimmer	0–3 Off
		4–39 Red dimmer
		40–75 Green dimmer
		76–111 Blue dimmer
		112–147 Yellow dimmer
		148–183 Cyan dimmer
		184–219 Magenta dimmer
13	Aux. light strobe	0–4 Off
		5–250 Simultaneous stroboscopic
		251–255 Light on
14	Aux. light effect	0–4 Off
		5–9 Effect 1
		… 1 effect per 5 DMX values, up to effect 50
		255 Effect 51
15	Aux. light effect speed	0–127 Forward, slow → fast
15	Aux. light effect speed	128–255 Reverse, slow → fast
16	Reset	0–199 No function
		200–205 Full reset
		240–255 No function

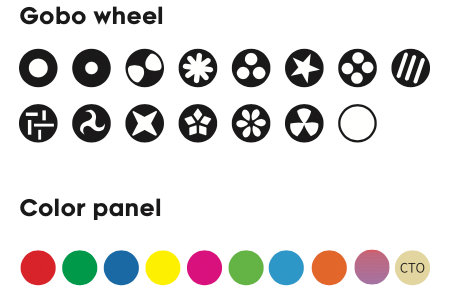

5.1Color Wheel — Channel 08

The manufacturer labels the color wheel positions only as "Color 1" through "Color 10" (no reference color chart available). Once the real color wheel reference photo is available, this page will be updated with the actual color values.

CH 08	Color (manufacturer label)
0–7	White (open)
8–19	Color 1
20–31	Color 2
32–43	Color 3
44–55	Color 4
56–67	Color 5
68–79	Color 6
80–91	Color 7
92–103	Color 8
104–115	Color 9
116–127	Color 10
128–189	Anticlockwise, fast → slow
190–193	Stop
194–255	Clockwise, slow → fast

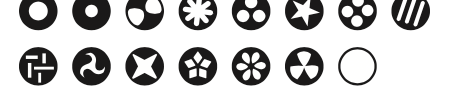

5.2Gobo Wheel — Channel 09 (14 fixed patterns + white)

CH 09	Pattern / Effect
0–7	White (open)
8–11	Gobo 1
12–15	Gobo 2
16–19	Gobo 3
20–23	Gobo 4
24–27	Gobo 5
28–31	Gobo 6
32–35	Gobo 7
36–39	Gobo 8
40–43	Gobo 9
44–47	Gobo 10
48–51	Gobo 11
52–55	Gobo 12
56–59	Gobo 13
60–63	Gobo 14

CH 09	Run Effect
64–189	Gobo 1–14 shake effect, slow → fast (9 DMX values each)
190–221	Gobo wheel run reverse, fast → slow
222–223	Stop
224–255	Gobo wheel run forward, slow → fast

Chapter 06

06Maintenance & Troubleshooting

Problem	Possible cause / solution
Unit does not power on	Check fuse · check mains socket/cable · check mode (sound-active with no signal)
Erratic or missing control	Power-cycle · run reset menu · restore factory settings
Incorrect settings	Restore factory settings via "Factory" menu

Clean the optics regularly with compressed air/vacuum; remove residue with distilled water or isopropanol on a lint-free cloth — dab in a circular motion rather than wiping, then dry with a soft cloth. Clean fans and vents regularly to remove dust. Damage from excessive dust, smoke, or improper use is not covered by warranty.

Appendix

—CE Compliance Notice

The manufacturer declares under its sole responsibility that the LV-100 Beam complies with the relevant EU harmonization legislation.

Applied EU Directives

2014/35/EU — Low Voltage Directive (LVD)
2014/30/EU — Electromagnetic Compatibility Directive (EMC)
2011/65/EU — RoHS Directive (restriction of hazardous substances)

Applied Harmonized Standards

EN IEC 60598-1 / EN IEC 60598-2-17 — Safety of luminaires (studio/stage lighting)
EN 62471 — Photobiological safety of lamps and lamp systems
EN 55015 / EN IEC 61547 / EN IEC 61000-3-2 / EN 61000-3-3 — Electromagnetic compatibility (EMC)

The signed EU Declaration of Conformity is available as a separate document upon request from the manufacturer.
